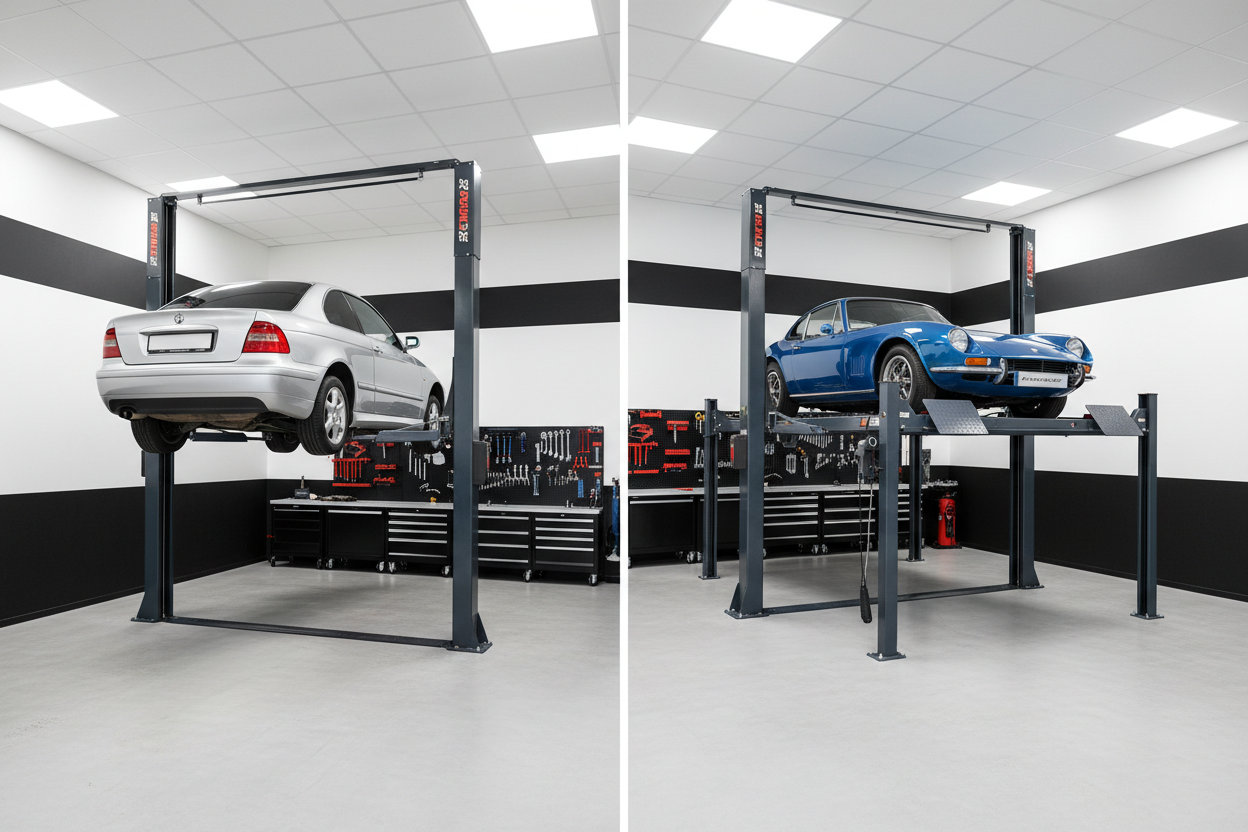

2-Post vs. 4-Post Lifts: Which Is Right for Your Garage?
If you're considering a vehicle lift for your garage, one of the first decisions you'll have to make is whether a 2-post or 4-post lift makes more sense.
Both can be excellent choices, but they're designed around different priorities.
A 2-post lift is generally the better choice when your primary goal is repair, maintenance, restoration, and unrestricted access underneath the vehicle.
A 4-post lift is generally the better choice when your priorities are vehicle storage, convenience, and easy drive-on access.
Neither is automatically "better." The right choice depends on how you intend to use your garage.
The Basic Difference
The easiest way to understand the difference is to look at how each lift supports the vehicle.
2-Post Lift
A 2-post lift uses two columns with lifting arms that engage the vehicle at designated lifting points. Once raised, the wheels are generally hanging free and much of the underside of the vehicle is exposed.
That makes a 2-post lift particularly useful for:
- Brake work
- Suspension work
- Exhaust repairs
- Drivetrain work
- Transmission service
- Engine work
- Restoration
- General mechanical repairs
The vehicle isn't sitting on runways, so there's significantly less equipment between you and the underside of the vehicle.
4-Post Lift
A 4-post lift supports the vehicle on four runways. The vehicle is driven onto the lift, positioned, and raised.
This makes a 4-post lift extremely convenient for:
- Vehicle storage
- Seasonal vehicles
- Collector cars
- Detailing
- Oil changes
- General maintenance
- Creating additional parking space
One of the biggest advantages is that a 4-post lift can allow one vehicle to be stored above another. For someone with limited garage space and multiple vehicles, that can be a major advantage.
Which Lift Gives You Better Access?
If your primary concern is working underneath the vehicle, the 2-post lift generally has the advantage.
Because the wheels are hanging free, you can access:
- Wheels
- Brakes
- Suspension
- Axles
- Exhaust
- Frame
- Drivetrain
A 4-post lift can still be used for mechanical work, but the runways can limit access. Optional accessories such as rolling bridge jacks can make wheel-off work possible on some 4-post lifts, but that adds another piece of equipment and another consideration.
If you're building a garage specifically around doing mechanical work, start your comparison with a 2-post lift.
Which Lift Is Better for Storage?
This is where the 4-post lift has a major advantage.
A 4-post lift can allow you to park one vehicle underneath another, assuming the lift, vehicles, garage height, and applicable requirements make that configuration appropriate.
This can be especially useful for:
- Classic cars
- Project vehicles
- Sports cars
- Seasonal vehicles
- Collectors
- Anyone running out of garage space
A 2-post lift isn't generally intended to serve as a long-term vehicle storage platform in the same way. If storage is the primary reason you're buying a lift, a 4-post lift deserves serious consideration.
Which Is Easier to Use?
A 4-post lift is generally more straightforward from a vehicle-loading perspective. You drive onto the runways, position the vehicle, set the parking equipment as required by the manufacturer, and raise the lift.
A 2-post lift requires more attention to vehicle positioning and lifting-point placement. The lifting arms need to be positioned correctly at the manufacturer's specified lifting points.
That's not necessarily a disadvantage. In fact, for someone who uses a lift regularly, positioning a vehicle on a 2-post lift quickly becomes routine. But the process is different.
What About Garage Space?
Don't compare the footprint of the equipment alone. Think about the space you need to actually use the equipment.
For a 2-post lift, consider:
- Distance between columns
- Column placement
- Arm swing
- Vehicle width
- Door clearance
- Walk-around space
For a 4-post lift, consider:
- Overall runway length
- Approach space
- Garage door location
- Vehicle overhang
- Space around the columns
- Whether another vehicle needs to be parked underneath
Measure your garage before selecting a model. And remember that the manufacturer's published dimensions are the starting point — not the entire space requirement.
What About Ceiling Height?
This is one of the biggest factors for either type of lift. Don't simply measure from the floor to the highest point of your ceiling. Measure to the lowest obstruction.
That may be:
- Garage door tracks
- Garage door openers
- Lights
- Beams
- HVAC equipment
- Storage systems
The actual ceiling requirement depends on the specific lift and the vehicle you're raising. Some low-clearance lift designs can work in garages where taller models cannot. Never assume a lift will fit based solely on the nominal ceiling height. Use the manufacturer's published dimensions and clearance requirements.
What About Concrete?
A 2-post lift places significant loads through its columns and anchors, so the concrete requirements are especially important. A 4-post lift distributes its load differently, and some models are designed to be freestanding.
That doesn't mean the floor requirements can be ignored. For either type, verify:
- Concrete thickness
- Concrete strength
- Condition of the slab
- Levelness
- Cracks or damage
- Installation requirements
- Anchor requirements, if applicable
Always follow the specific manufacturer's installation documentation.
Safety and Certification
A vehicle lift is not an area where we'd recommend shopping based solely on price.
The Automotive Lift Institute's certification program independently tests and validates lift models against the applicable automotive lift safety standard. Certification is for the specific model, not simply the manufacturer.
If you're considering a lift, verify the actual model in the ALI Certified Lift Directory rather than relying solely on a seller's marketing claims.
So Which One Should You Buy?
Choose a 2-post lift if:
- You primarily perform mechanical repairs
- You want unrestricted underbody access
- You regularly work on brakes and suspension
- You're restoring vehicles
- You want the wheels completely accessible
- You don't need the lift primarily for storage
Choose a 4-post lift if:
- Storage is a major priority
- You want to stack vehicles
- You want easy drive-on access
- You're storing collector or seasonal vehicles
- You do lighter maintenance
- You want a convenient platform for detailing
The Bottom Line
The best lift isn't necessarily the biggest or most expensive one. It's the lift that fits your garage and the way you actually work.
If your garage is a workshop first, a 2-post lift is likely the better starting point. If your garage is primarily about vehicle storage and convenience, a 4-post lift may make more sense.
And if you're somewhere in between, look carefully at the specific models available. Features, dimensions, capacities, and installation requirements vary considerably.
