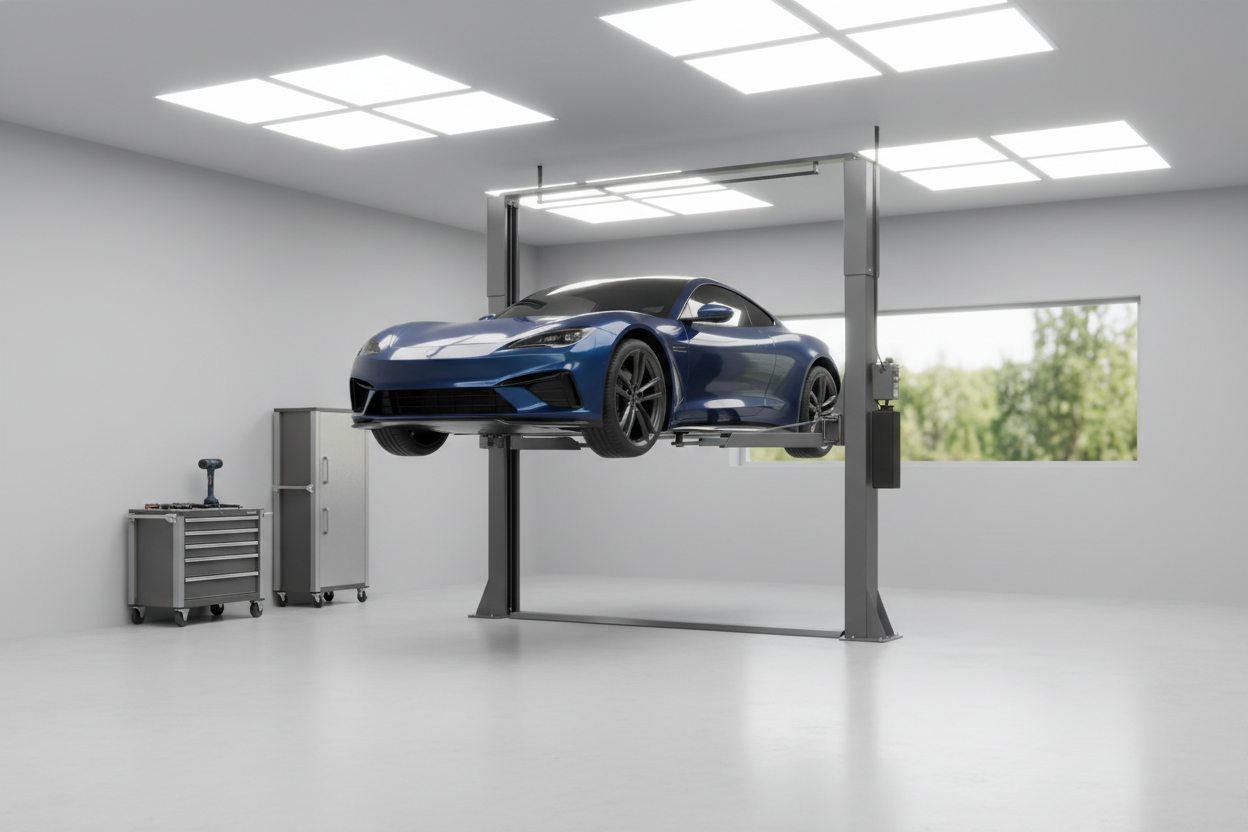

How to Choose a 2-Post Vehicle Lift
A 2-post vehicle lift can completely change what you're able to do in a garage.
Oil changes, brake work, suspension repairs, exhaust work, transmission service, and restoration projects become dramatically easier when you can safely get a vehicle several feet off the ground. But choosing a lift isn't as simple as finding one with enough lifting capacity.
Your garage dimensions, vehicles, concrete, ceiling height, electrical service, and the type of work you plan to do all matter.
This guide walks through the major factors to consider before purchasing a 2-post lift.
1. Start With the Vehicles You Plan to Lift
The best place to start isn't the lift—it's your vehicles.
Consider the heaviest and largest vehicle you expect to work on. Don't choose a lift based only on what you own today if you expect that to change.
Think about:
- Vehicle weight
- Wheelbase
- Overall width
- Frame or lifting-point configuration
- Ground clearance
- Vehicle height
- Where the manufacturer's approved lifting points are located
A lift should have adequate capacity for the vehicles you intend to service, with an appropriate safety margin.
For example, a 7,000-lb lift may be perfectly suitable for many passenger vehicles and light-duty applications, while someone regularly working on heavy-duty pickups may need a higher-capacity model.
Don't simply choose a lift based on its maximum advertised capacity. Make sure the lift's specifications and adapters are appropriate for the actual vehicles you'll be working on.
2. How Much Lift Capacity Do You Need?
2-post lifts are available in a wide range of capacities.
Common capacities include:
- 7,000–9,000 lbs
- 10,000 lbs
- 12,000 lbs
- 15,000 lbs and higher
For a serious home garage, a 9,000- or 10,000-lb lift can be an attractive option because it provides substantial capacity without necessarily requiring the footprint of a much larger commercial lift.
But capacity isn't the only consideration. A larger-capacity lift may have larger columns, a wider overall footprint, different ceiling requirements, different concrete requirements, different electrical requirements, and higher purchase and installation costs.
Choose the capacity based on what you actually need rather than automatically buying the largest lift available.
3. Measure Your Ceiling Height Before Shopping
This is one of the most important measurements you'll take.
A lift can only be useful if your garage has enough vertical space to accommodate both the lift and the vehicle.
Measure from the finished floor to the lowest obstruction in the area where the lift will be installed. Look for:
- Garage door tracks
- Garage door openers
- Ceiling lights
- Ductwork
- Beams
- Storage systems
- Other obstructions
Also consider the height of the tallest vehicle you expect to lift. A taller ceiling gives you more flexibility, but you don't necessarily need an enormous shop to use a 2-post lift. The right lift and vehicle combination can work in garages with more limited ceiling height.
Always use the specific lift manufacturer's published installation and clearance requirements.
4. Garage Door Clearance Matters Too
Ceiling height isn't the only vertical measurement that matters. Your garage door can become an unexpected problem.
When a vehicle is raised, parts of the vehicle can approach the garage door mechanism or tracks. Before buying a lift, measure:
- Finished floor to ceiling
- Floor to the bottom of the garage door tracks
- Floor to the garage door opener
- Distance between the garage door and proposed lift location
- Overall garage width
- Available depth
If possible, make a simple drawing of your garage with these measurements. It can save you from buying equipment that doesn't fit your space.
5. Consider the Type of Arms
The lifting arms are one of the major differences between 2-post lift designs. You'll commonly encounter asymmetric, symmetric, and combination designs.
Symmetric Lifts
The columns and arms are positioned so that the vehicle is centered between the columns. This can provide a straightforward setup and is commonly associated with larger vehicles and commercial applications.
Asymmetric Lifts
Asymmetric designs move the vehicle's center of gravity relative to the columns and are often designed for easier door opening and access in home garage settings. Many home garage users find asymmetric designs practical for everyday use.
Arm reach, swing clearance, and adapter compatibility all matter for the vehicles you'll be lifting. Review the manufacturer's specifications carefully for your specific vehicles.
6. Think About Usable Space Around the Lift
For a home garage, usable space around the lift is almost as important as the lift itself.
Consider how the lift columns will affect your ability to move around the vehicle, use floor jacks or transmission jacks, open doors, and work on both sides of the vehicle comfortably. A lift that technically fits in your garage may leave you with very little working room.
7. Your Concrete Slab Is Extremely Important
This is an area where you should never guess.
2-post lifts transfer significant loads into the concrete through their mounting points. The manufacturer's installation requirements will specify:
- Minimum concrete thickness
- Concrete strength
- Anchor requirements
- Minimum distances from cracks and edges
- Required spacing
- Installation procedures
Existing garages can vary considerably. Older slabs, slabs with unknown specifications, cracked concrete, additions, repairs, or unusual construction may require additional evaluation.
Never assume that because a lift physically fits in your garage, your existing slab is suitable for it.
Follow the manufacturer's installation requirements and, when appropriate, have the slab evaluated by a qualified professional.
8. Think About Electrical Requirements
Many 2-post lifts use electric motors and hydraulic systems that require a dedicated electrical circuit. Requirements vary by lift.
Before purchasing, check:
- Voltage
- Phase
- Required amperage
- Motor specifications
- Disconnect requirements
- Local electrical requirements
If you're building or renovating a garage, it makes sense to plan the electrical system around the equipment you're actually going to install. If you're putting a lift into an existing garage, verify the electrical requirements before purchasing.
9. Think About What You'll Actually Do Under the Vehicle
Different types of work benefit from different lifting heights and configurations.
- Oil changes and brake work: You may not need maximum lifting height.
- Suspension and steering work: You'll want good access to the wheels and suspension components.
- Exhaust work: A lift that provides substantial access underneath the vehicle can make a major difference.
- Transmission and drivetrain work: Consider the clearance you'll need for transmission jacks, support equipment, and removing large components.
- Restoration work: If you're spending months underneath a vehicle, ergonomics become particularly important. Being able to position the vehicle at a comfortable working height can make long projects considerably easier.
10. Don't Forget the Accessories
The lift itself is only part of the system. Depending on the lift and your vehicles, you may need or want:
- Short and tall lifting adapters
- Truck adapters
- Sliding adapters
- Frame adapters
- Drip trays
- Rolling bridge jacks
- Transmission jacks
- Wheel chocks
- Additional safety accessories
Make sure you understand what comes with the lift and what must be purchased separately. A lift that looks inexpensive initially can become considerably more expensive once the necessary accessories and installation requirements are added.
11. Installation Is Part of the Purchase
A vehicle lift isn't something you should treat like a typical piece of garage equipment. Installation matters.
Depending on the equipment and location, installation may involve positioning the columns, drilling and installing anchors, plumbing or hydraulic connections, electrical work, leveling, initial inspection, and safety testing.
Some manufacturers offer professional installation services, while others provide installation procedures for qualified installers. Before purchasing, determine who is going to install it — and what the manufacturer's installation documentation requires.
12. Don't Buy Based on Price Alone
A vehicle lift is one of those purchases where the cheapest option isn't necessarily the best value.
Consider the entire package: lift price + shipping + accessories + installation + electrical work + concrete modifications. Then consider the manufacturer's documentation, parts availability, warranty, service support, and reputation.
A lift is equipment you're going to trust with thousands of pounds of vehicle above you. That makes quality, support, and proper installation worth considering alongside the initial purchase price.
2-Post Lift Buying Checklist
Before you buy, make sure you can answer these questions:
Your Garage
- What is the ceiling height?
- What is the garage door track height?
- Are there beams, lights, ductwork, or other obstructions?
- How wide and deep is the available installation area?
- Is the concrete suitable for the specific lift?
Your Vehicles
- What is the heaviest vehicle you'll lift?
- What are the vehicle dimensions?
- Where are the approved lifting points?
- Do you need truck or specialty adapters?
The Lift
- What is the rated capacity?
- What is the maximum lifting height?
- What are the overall dimensions?
- Is it symmetric, asymmetric, or configurable?
- What are the arm reach and swing requirements?
- What adapters are included?
- What accessories will you need?
Installation
- What are the concrete requirements?
- What are the electrical requirements?
- Who will install the lift?
- What does the manufacturer require for installation and inspection?
The Bottom Line
Choosing a 2-post lift isn't simply a matter of finding the highest-capacity lift you can afford.
The right lift is the one that fits your garage, works with your vehicles, supports the type of work you do, and can be properly installed according to the manufacturer's requirements.
Take your measurements first. Identify the vehicles you'll be lifting. Determine your concrete and electrical requirements. Then compare lifts based on the complete package rather than price alone.
