How Much Ceiling Height Do You Need for a Vehicle Lift?
One of the most common mistakes people make when planning a garage lift is looking only at the number on the tape measure.
"I have a 10-foot ceiling."
That sounds useful — but it doesn't tell you whether a particular vehicle lift will work.
The actual question is: How much usable vertical clearance do you have where the lift will be installed?
The answer depends on the lift, the vehicle, and everything else occupying the space above it.
Start With the Lowest Obstruction

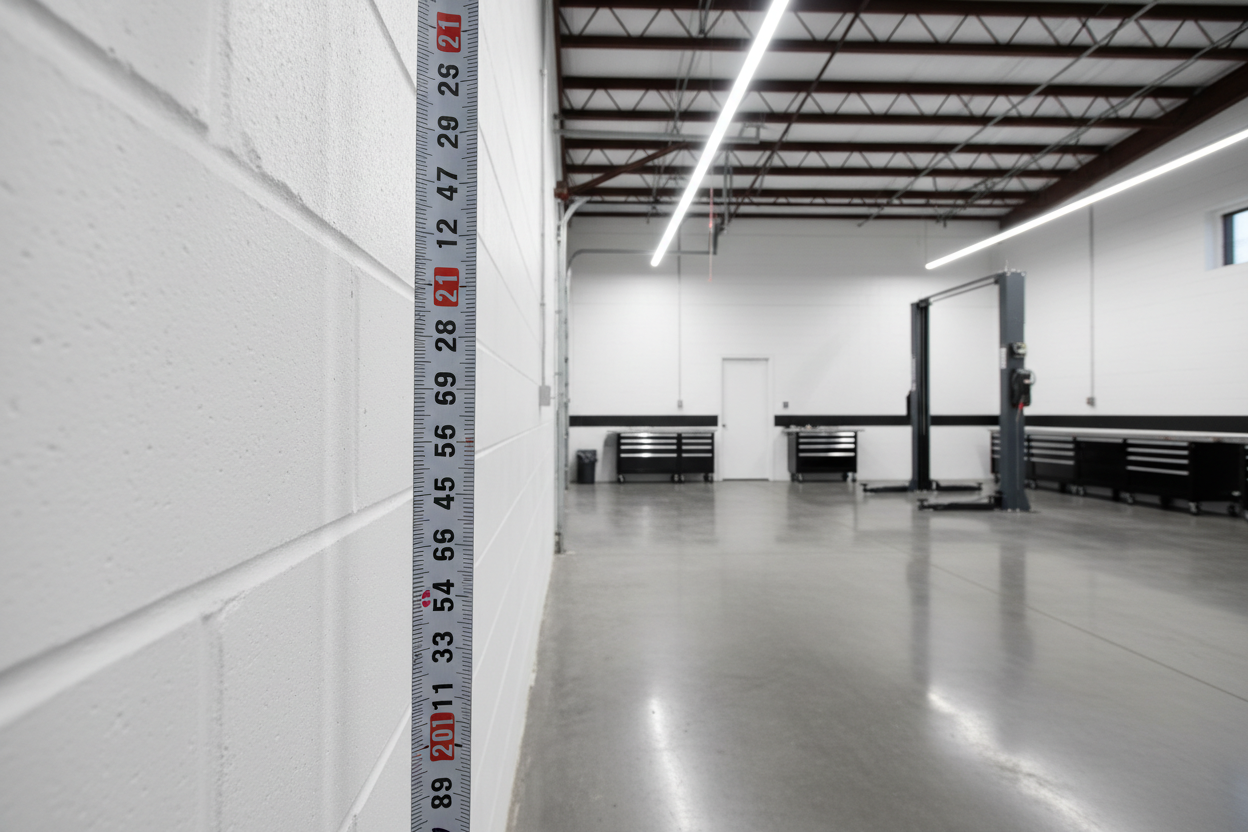

Measure from the finished garage floor to the lowest obstruction. That may be lower than the actual ceiling.
Look for:
- Garage door tracks
- Garage door openers
- Ceiling fans
- Light fixtures
- Beams
- HVAC ductwork
- Storage racks
- Structural framing
If a beam hangs 10 inches below the ceiling, that beam — not the ceiling — is your limiting height in that location.
Measure Your Garage in Several Places
Don't take just one measurement. Measure:
- Floor to ceiling
- Floor to garage door track
- Floor to garage door opener
- Floor to lowest beam
- Floor to lowest light fixture
Also measure the width and depth of the proposed lift location. Garages aren't always perfectly level or consistent from one location to another.
Then Measure Your Vehicle
The height of your vehicle matters just as much as the height of your garage. Measure the tallest vehicle you expect to lift.
Remember to account for:
- Roof-mounted accessories
- Antennas
- Roof racks
- Truck accessories
- Suspension modifications
- Tires
- Other equipment that changes vehicle height
If you have multiple vehicles, use the tallest one as your planning reference.
Understand the Difference Between "Lift Height" and "Garage Height"
A lift may advertise a maximum rise of a certain number of inches. That doesn't mean you can simply subtract that number from your ceiling height.
You have to consider the entire system:
Vehicle height + desired working height + lift structure + clearance = required vertical space
And the exact calculation depends on the lift design. Some lifts have overhead crossmembers. Others use floor plates. Some have adjustable heights or different configurations. That's why the manufacturer's dimensional drawing is so important.
What About Low-Ceiling Garages?
A lower ceiling doesn't automatically mean a lift is impossible. There are lift designs specifically intended for lower-clearance applications.
For example, some baseplate or low-profile 2-post lifts eliminate the need for a tall overhead crossmember, and can fit substantially lower ceilings than standard overhead models.
But there's an important tradeoff: a lift that physically fits doesn't necessarily give you the working height you want. You might be able to raise the vehicle — but not high enough to stand comfortably underneath it.
Decide How High You Actually Need the Vehicle
Think about the work you'll be doing. For some jobs, raising the vehicle a few feet may be enough. For serious underbody work, you'll probably want substantially more clearance.
Consider:
- Wheel and brake work — You need good access to the wheels and suspension.
- Exhaust work — More vertical working room can make a major difference.
- Transmission work — You need space not only for yourself but potentially for transmission jacks and other equipment.
- Restoration work — If you're going to spend hours underneath the vehicle, comfortable working height becomes much more important.
Don't Forget the Garage Door
The garage door can be one of the biggest obstacles. Even if the ceiling is tall enough, the garage door tracks or opener may interfere with the lift or vehicle.
Before purchasing, determine:
- Where the garage door travels
- Where the tracks are located
- Where the opener is mounted
- How far the door extends into the garage
- Whether the raised vehicle will interfere with the door
In some garages, changing the garage door configuration may be necessary to take full advantage of a lift.
Think About Future Vehicles
Don't plan the lift around only the vehicle currently sitting in your garage. If you might eventually own a taller pickup, a full-size SUV, a classic truck, a taller 4x4, or a vehicle with a roof rack — consider those dimensions before committing to the lift. The lift is a long-term investment.
A Simple Garage Measurement Checklist
Before contacting a lift manufacturer or dealer, write down:
Your Garage
- Overall ceiling height
- Lowest ceiling obstruction
- Garage door track height
- Garage door opener height
- Garage width
- Garage depth
- Available electrical service
Your Vehicle
- Overall height
- Overall width
- Wheelbase
- Weight
- Tire size
- Any roof-mounted equipment
The Lift
- Overall lift height
- Maximum rise
- Required clearance
- Overall width
- Column dimensions
- Manufacturer's installation requirements
The Bottom Line
Don't buy a vehicle lift and then try to make your garage work around it. Measure first.
The right lift should fit the physical space, work with your vehicles, and provide enough usable working height for the jobs you intend to perform.
Published lift dimensions are model-specific. Always use the manufacturer's installation documentation and dimensional drawings before purchasing or installing a lift. Automotive Lift Institute guidance likewise emphasizes manufacturer installation instructions and applicable installation standards.
